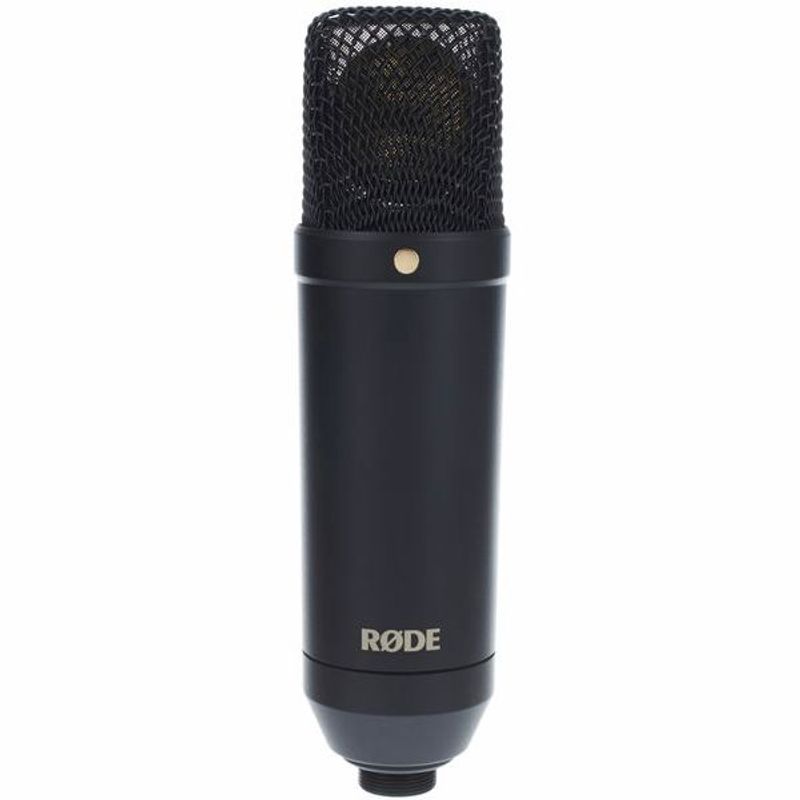

Rode NT1 Specs
Microphone
Primary Applications Live Sound, Studio Recording
Form Factor Large Diaphragm Mic / Stand/Boom Mount
Intended Sound Sources Vocals, Speech/Voice Over, Instrument
Sound Field Mono
Operating Principle Pressure Gradient
Capsule 1 x Condenser
Diaphragm 1" / 25.40 mm
Polar Pattern Cardioid
Orientation Side Address
Circuitry Solid-State (JFET)
Pad None
High-Pass Filter None
Tone Adjustment None
Gain Adjustment None
Indicators None
On-Board Controls None
Windscreen None
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL 132 dB SPL
Impedance 100 Ohms
Sensitivity -29 dBV/Pa at 1 kHz
Output Level 8 mV (Max, 1 kHz)
Dynamic Range 128 dB
Signal-to-Noise Ratio 90 dB A-Weighted
Equivalent Noise Level 4.5 dB A-Weighted
Connectivity
Output Connectors (Analog) 1 x XLR 3-Pin Male (on Mic)
Headphone Connector None
Power
Operating Voltage 24 V (Phantom Power)
48 V (Phantom Power)
Physical
Color Black
Mounting Shockmount (Included)
Included Case None
Included Filters Pop Filter
Construction Material Aluminum
Dimensions ø: 2 x L: 7.4" / ø: 5 x L: 18.7 cm
Weight 15.5 oz / 440 g
Packaging Info
Package Weight 4.95 lb
Box Dimensions (LxWxH) 10.5 x 8.25 x 6.75"
